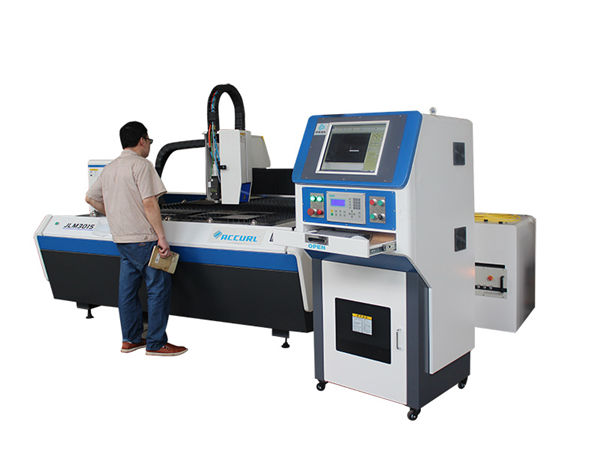

stainless steel precision fiber laser cutting machine high speed ball open structure

tuotteen yksityiskohdat

Sertifiointi: ISO9001: 2008

Maksu- ja toimitusehdot:

Minimitilausmäärä: 1 SET

Hinta: neuvottelut

Pakkaustiedot: Puinen kotelo

Delivery Time: 15- 30 Work Days

Toimituskyky: 2000 yksikköä kuukaudessa

Yksityiskohtainen tuotekuvaus

Tuotteen nimi:	High Precision Fiber Laser Cutting Machine For With Small Cutting Area For Metal Cutting	Laservoima:	500W/800W/1000W/2000W/3000W
Työalue:	500 * 500mm	Suurin liikkuvuusnopeus:	60m / min
Paikannustarkkuus:	± 0,01-0,03	Powe Supply:	3 × 380 V ± 10% 220 V ± 10%
Paketti:	Puinen kotelo	Takuu:	1 vuosi
sovellus:	Metallimateriaali	Ohjausohjelmisto:	Cypcut
CNC tai ei:	Joo	Kunto:	Uusi

Fiber laser Cutting Machine Features

♦ The double rack and pinion driving system and imported open-type CNC system enable high processing accuracy and high working efficiency during high speed cutting.
♦ Standard collocation of 500W fiber laser generator and optional 500W 750w, 1000W 2000W IPG or Maxphotonics or Nlight fiber laser generator ensures low operation and maintenance cost.
♦ Open structure is easy and convenient for material uploading and unloading.Drawer collecting device makes receiving materials more convenient.
♦ Aiming at high speed cutting, we design and manufacture strengthened welded machine body after 2 times of aging process which ensures long-term accuracy and stability of performance.
♦ Standard collocation of dual-pressure gas control system of 3 gas sources (high pressure air, nitrogen, oxygen) meets the processing requirement of all kinds of materials. Easy operation and low cost.
♦ Standard collocation of automatic nesting software (including material management and optimized processing technology) and database of process parameters is provided for easy operation and simple management.
Main Features of 500W High Precision Fiber Laser Cutting Machine:
BALL RAIL SYSTEM
Smooth & friction guided motion, high precision & high speed ball, long life & better load carrying capacity.

Ball screw mechanism
Precision movement imparted through ball screw mechanism. Supreme quality of ball screw to provide high accuracy and repeatability at high speed with low noise runner block.

User friendly software
User-friendly software for laser power and pulse frequency, pulse duration along with position control.

Nesting
Nesting software to nest different types of jobs in single sheet and optimal use of raw material. Accommodation of different types of jobs from scrap material & common edge cutting. Complete material management through user-friendly software.

Height sensing unit
Adjusting preset height automatically. It helps to cut little sloppy (non-flat or non-linear) surface of sheet. Non-contact & contact types of versions are available.

STRUCTURAL DESIGN
Structural design is such that it can withstand heavy loads. Vibration pads are used for sustaining the structural damping.

REMOTE CONTROL
Flexible machine controls from remote place with emergency stop facility, easy to understand or self-explanatory audio & video display machine.

SHEET LOADING & CLAMPING
Pneumatically actuated loader with ball on the top of it for easy sliding of the sheet. Pneumatically controlled firm clamping on the sheet. It can adjust the position of the clamp on the table. Safe loading and clamping for operator who is loading and un-loading the sheet.

DETACHABLE OPTICS
Replacements of mirror without any change in linked alignments.

THERMAL OPTICS STABILITY
Parallel water-cooling system with temperature control. It eliminates the thermal expansion of optics and increases peak power life.

OPTICS BELLOWS
Metallic bellows for protection of optics form contamination.

CONTROL & DISPLAY
SIEMENS or PC based SLT Ltd. controls available

Product Advantages

Kuitulasergeneraattori	YAG-lamppupumppulasergeneraattori	CO2 RF -laserputki
teho	500W/750W/1000W/2000W/3000W	500W/650W/850W	300W / 500W
edut	Erinomainen lasersäteen laatu, korkea leikkaustarkkuus, suuri leikkausnopeus, korkea tehokas fotoelektrinen muuntoprosentti, alhaiset käyttö- ja ylläpitokustannukset, helppo käyttö ja kätevä huolto	Verrattuna saman tehon kuitulasergeneraattoriin ja CO2 RF -metalllaserputkeen, sillä on alhaisempi hinta, paksumpi materiaalinleikkauskyky, laajempi käyttökenttä ja pienemmät kertaluonteiset investoinnit.	Se voi leikata metallilevyjä ja ei-metallisia materiaaleja. Laajempi valikoima soveltuvia materiaaleja. Säädettävä lähtöteho. Huoltovapaa. Helppo käyttää ja kätevä käyttää.
Sovellettavat materiaalit	Kaikenlaiset metallilevyt ja putket	Kaikenlaiset metallilevyt ja putket	All kinds of metal sheets and other nonmetal materials
Sovellettava teollisuus	Peltimetallit, rautatavarat, kellot, metallityötaideteokset jne.	Peltimetallit, keittiötarvikkeet, metallikirjaimet sekä tarvikkeet ja tarvikkeet jne.	Sheet metal, advertising, furniture and

Tekninen parametri

Työkoko		500 x 500 (mm)
Max. kiihtyvyys		1,2 g
X AXIS	Max. Nopeus	60m / min
	Reitti	500mm
	Paikannustarkkuus	± 0,01 mm
	Toiston tarkkuus	± 0.004mm
Y AXIS	Max. Nopeus	60m / min
	Reitti	500mm
	Paikannustarkkuus	± 0,01 mm
	Toiston tarkkuus	± 0.004mm
Z AXIS	Reitti	100mm

Työkunto

1	Työskentelylämpötila	-10 ℃ ~ 45 ℃
2	Suhteellinen kosteus	＜ 90% ei lauhdutinta
3	ympäristö	Hyvä ilmanvaihto, ei tärinää
4	Virtalähde	3 × 380 V ± 10% 220 V ± 10%
5	Teho taajuus	50hz

Application of Precision Fiber Laser Cutting Machine

1. Application Materials: Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc

2. Application Industries: Fiber Laser Cutting Machines are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.
